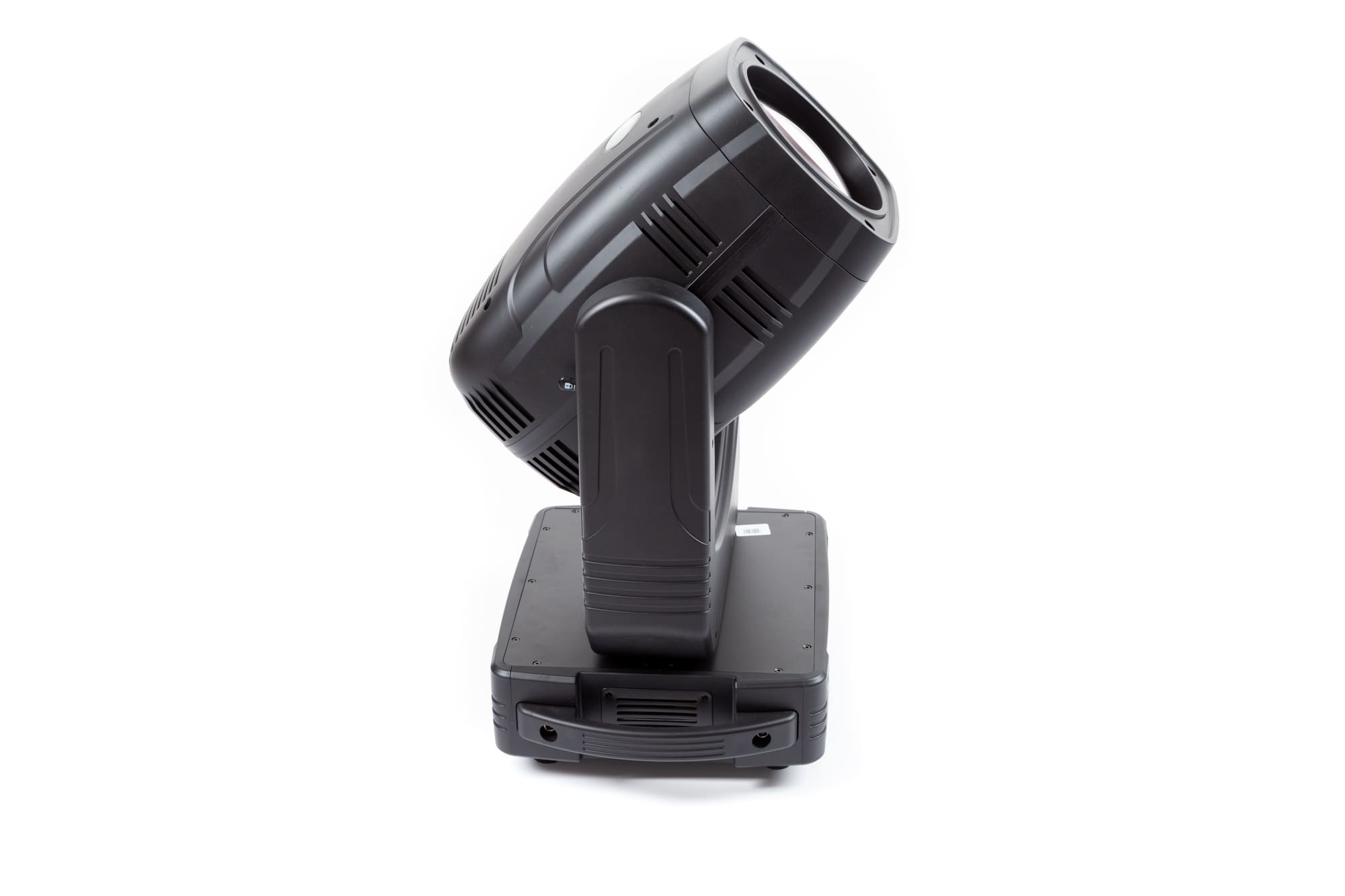

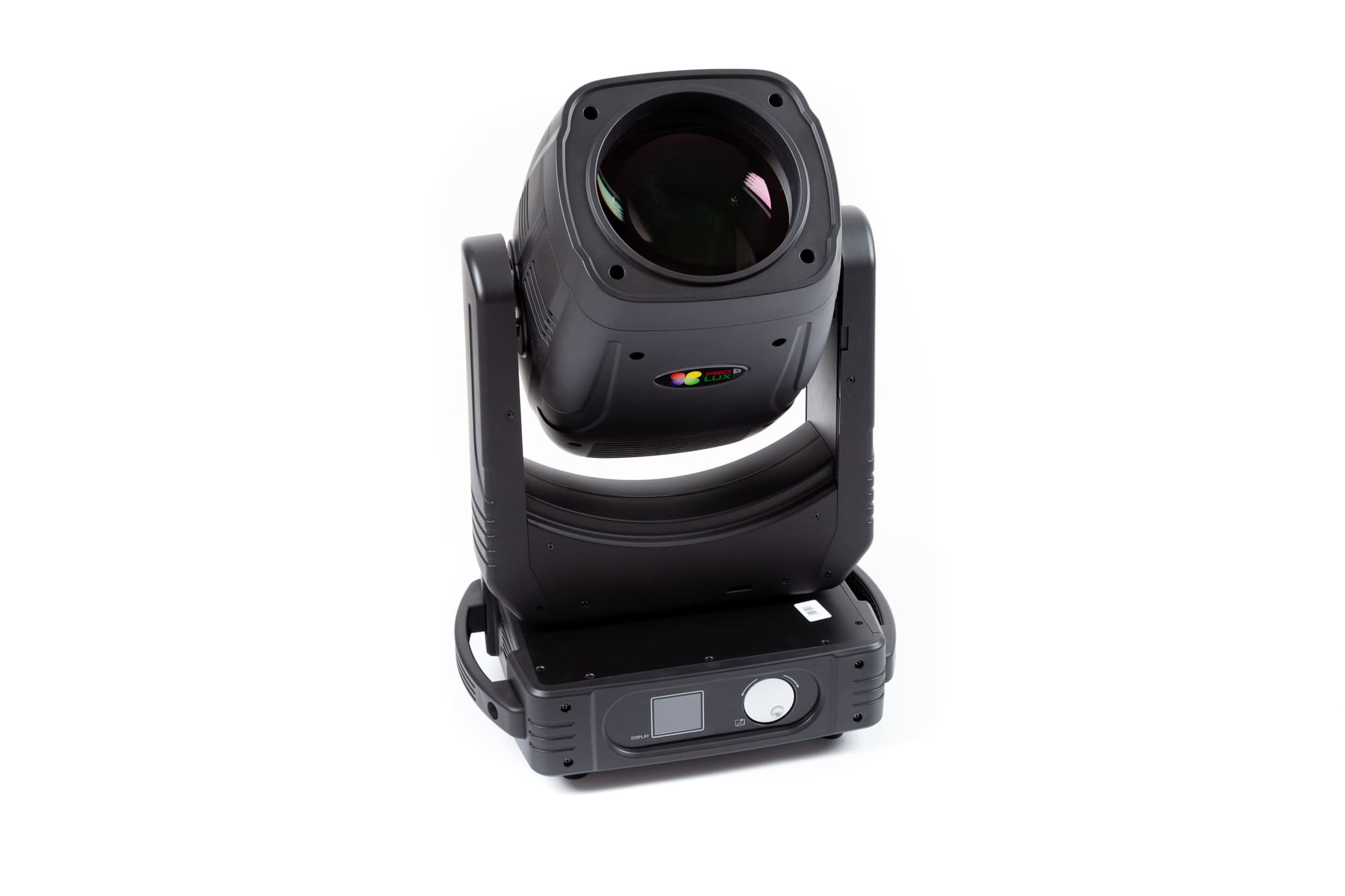

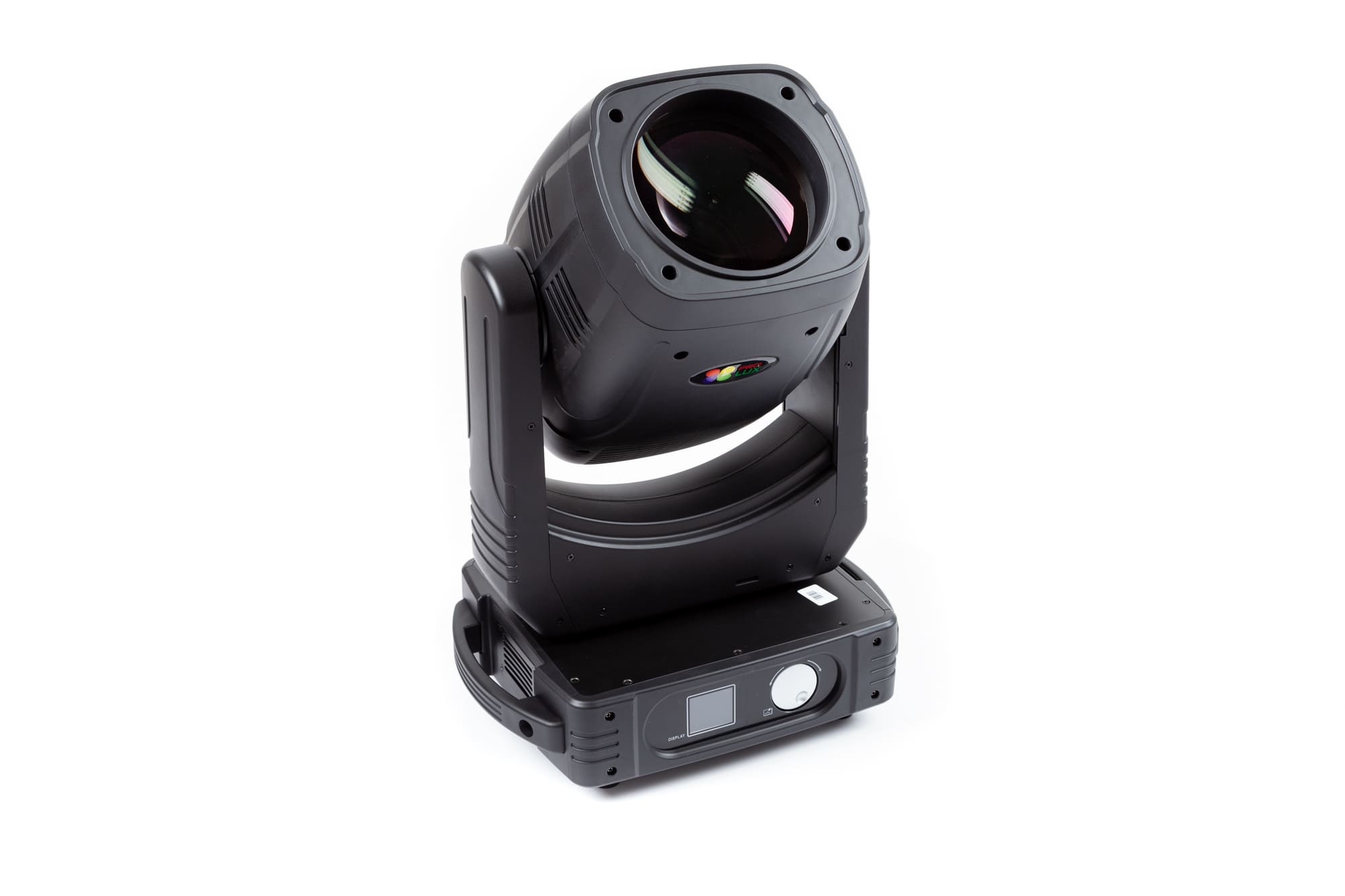

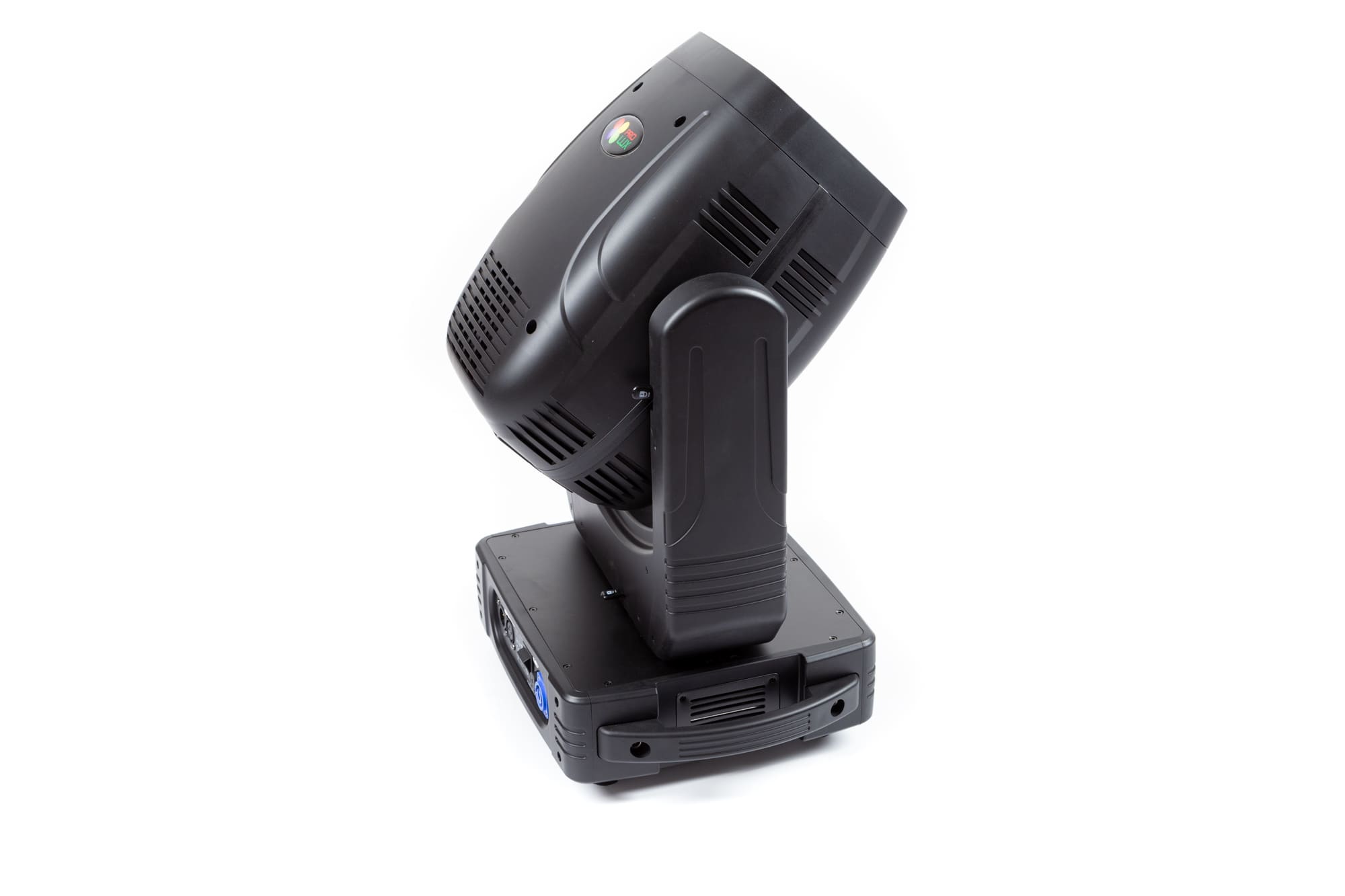

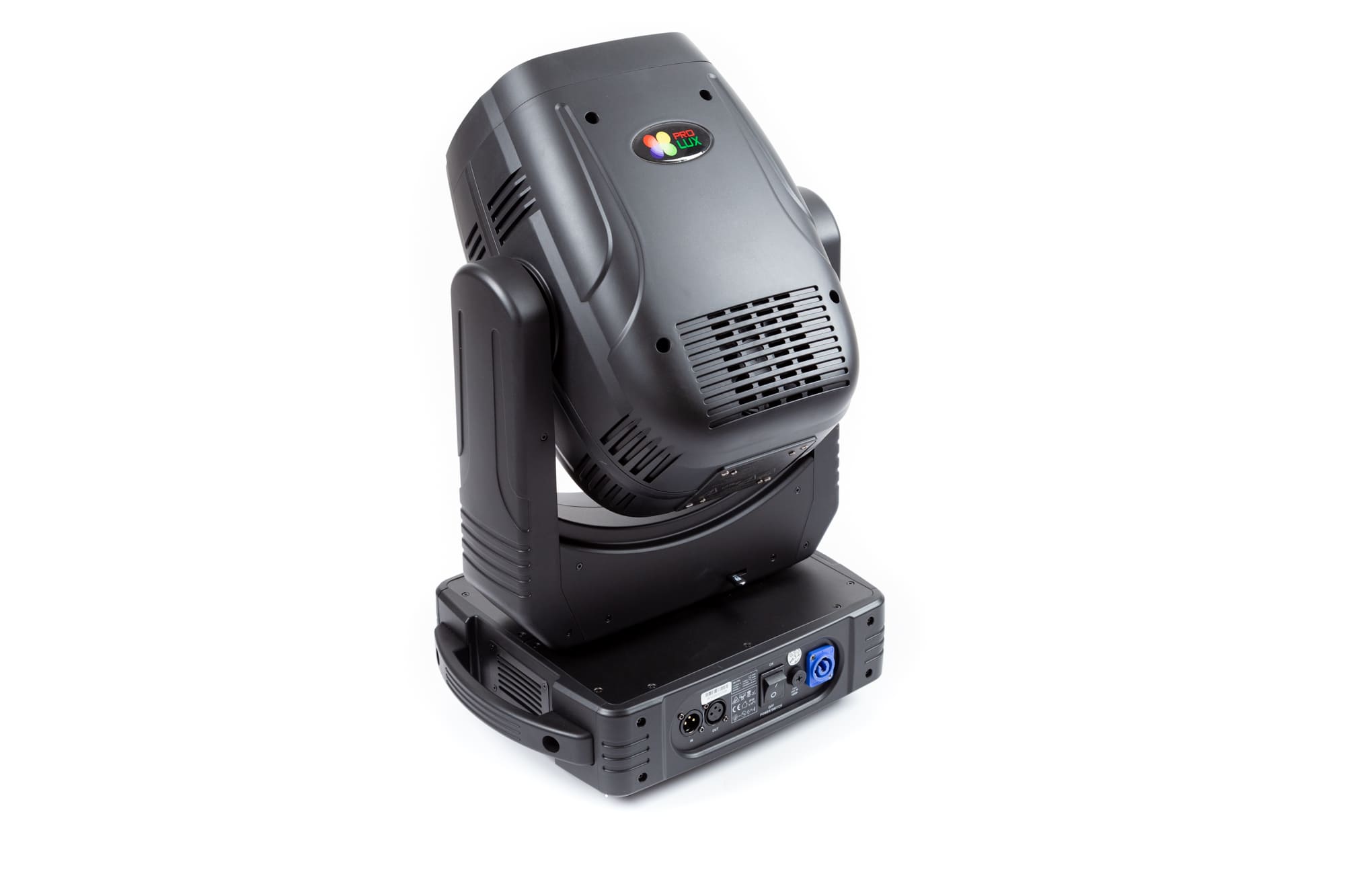

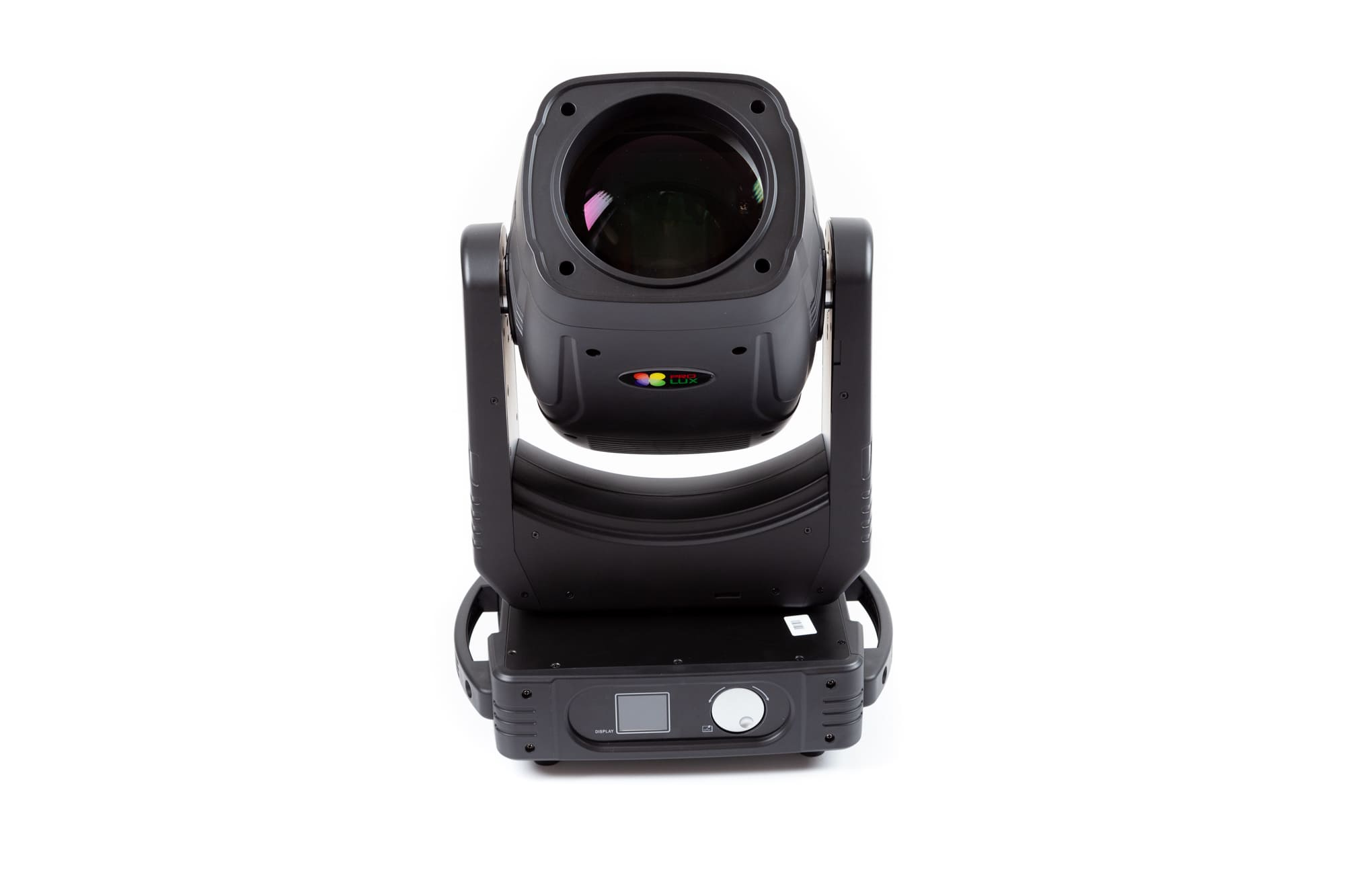

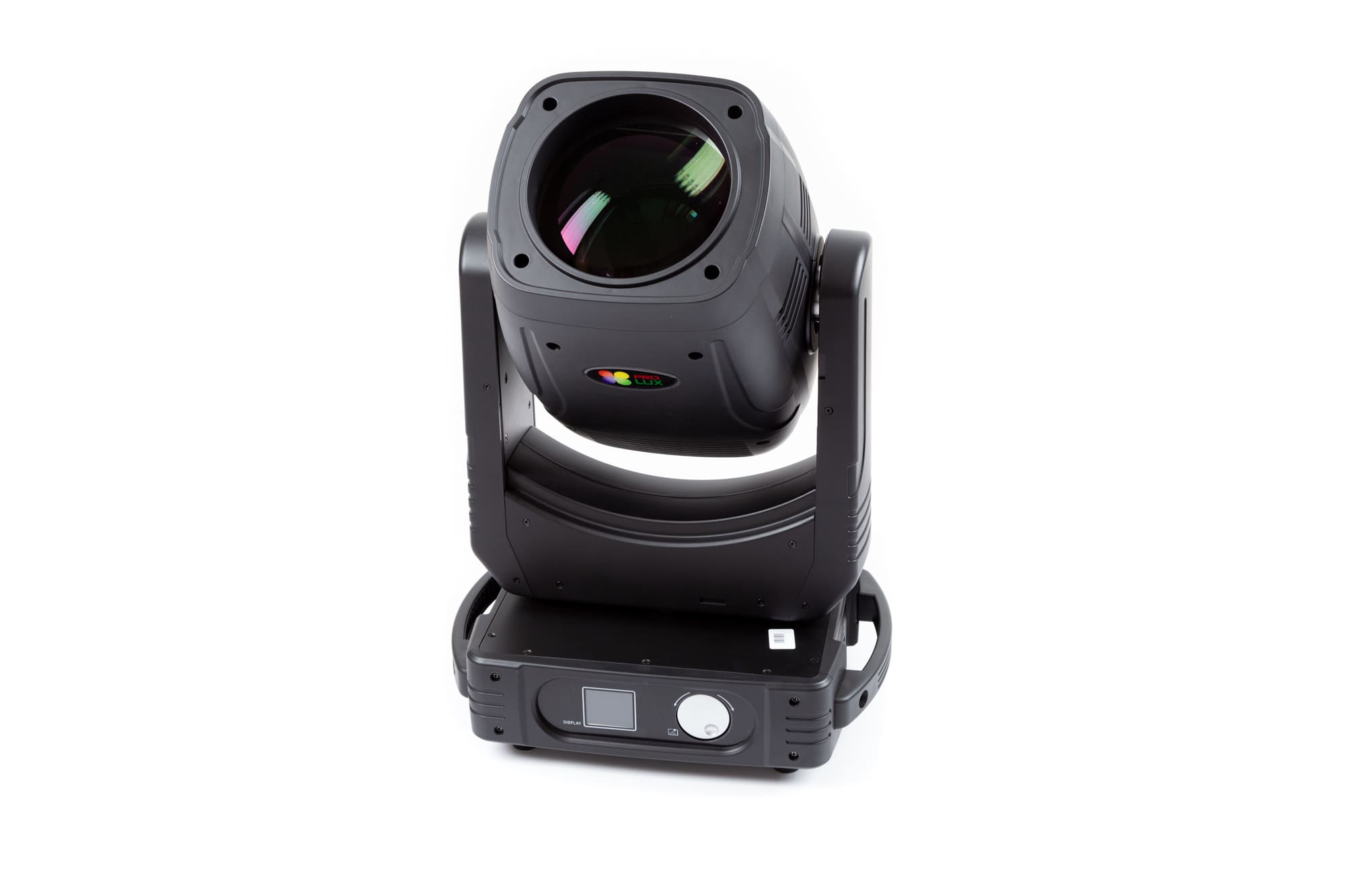

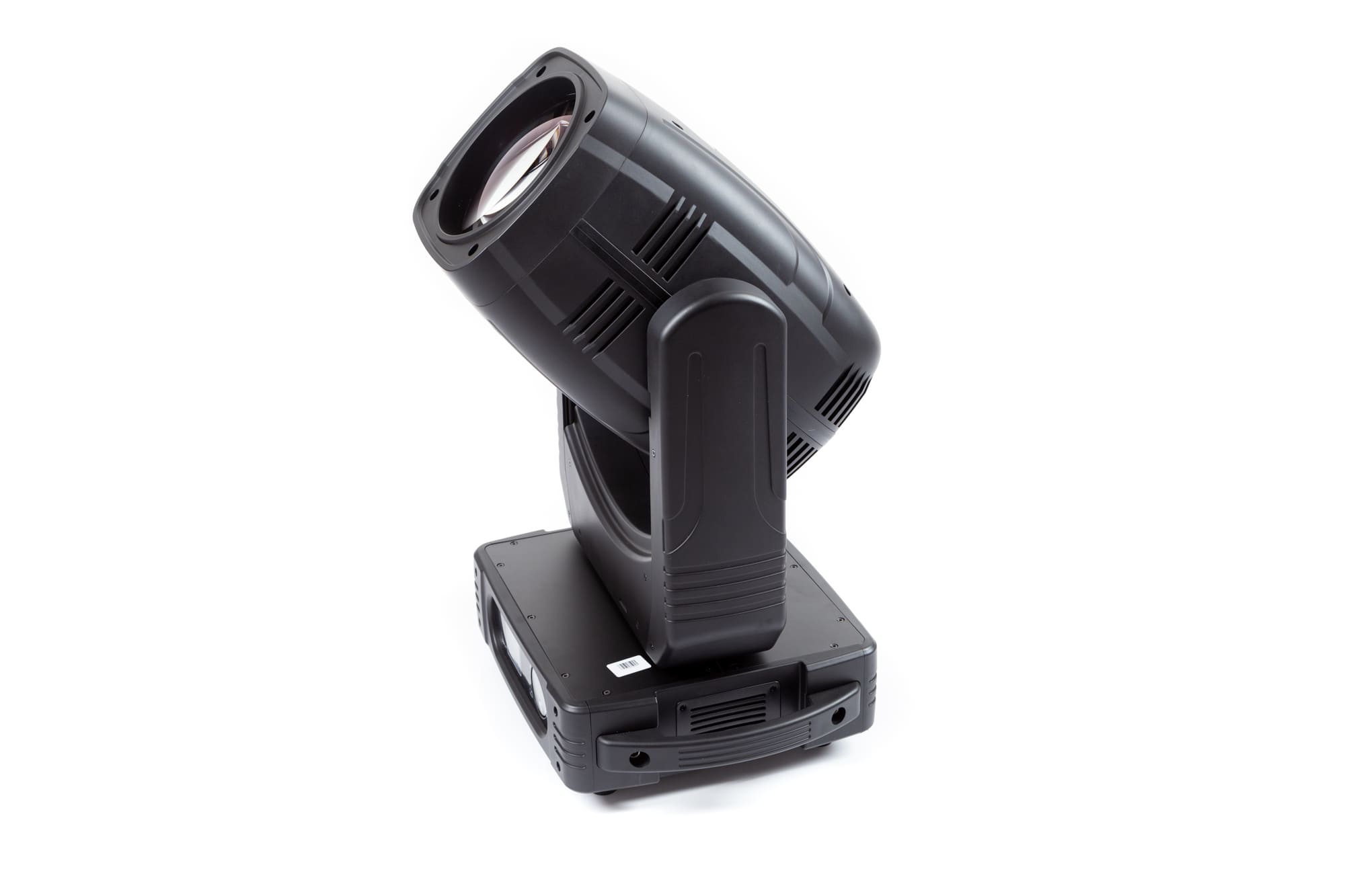

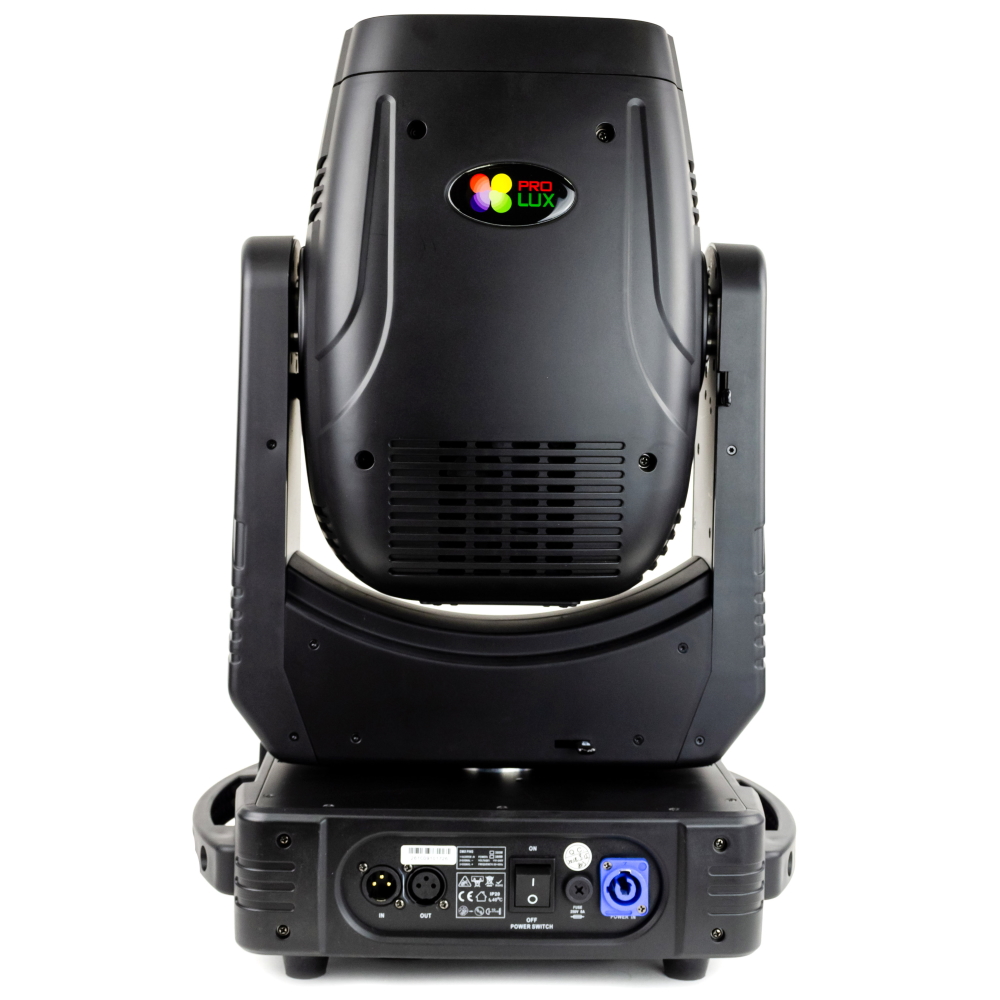

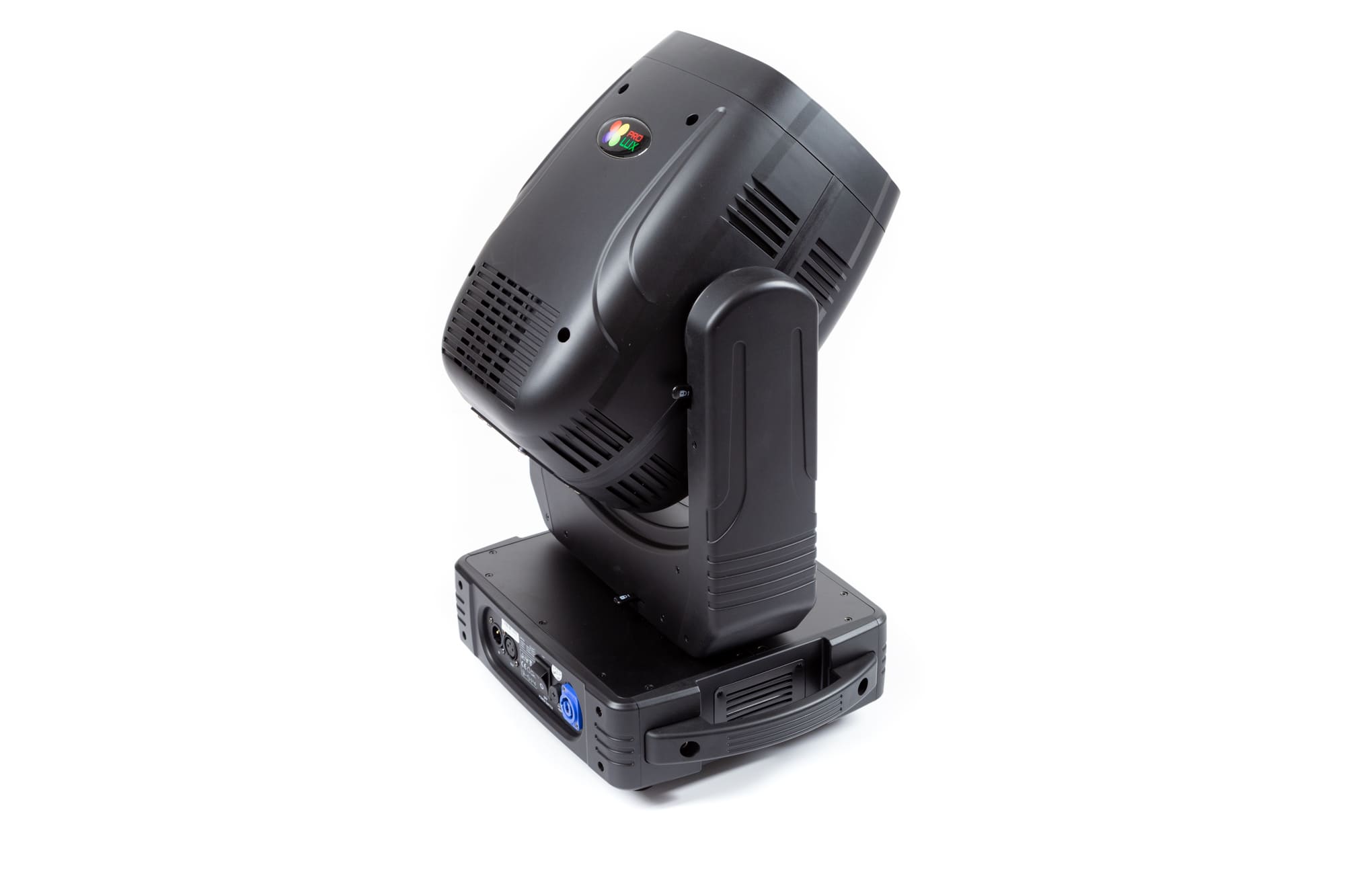

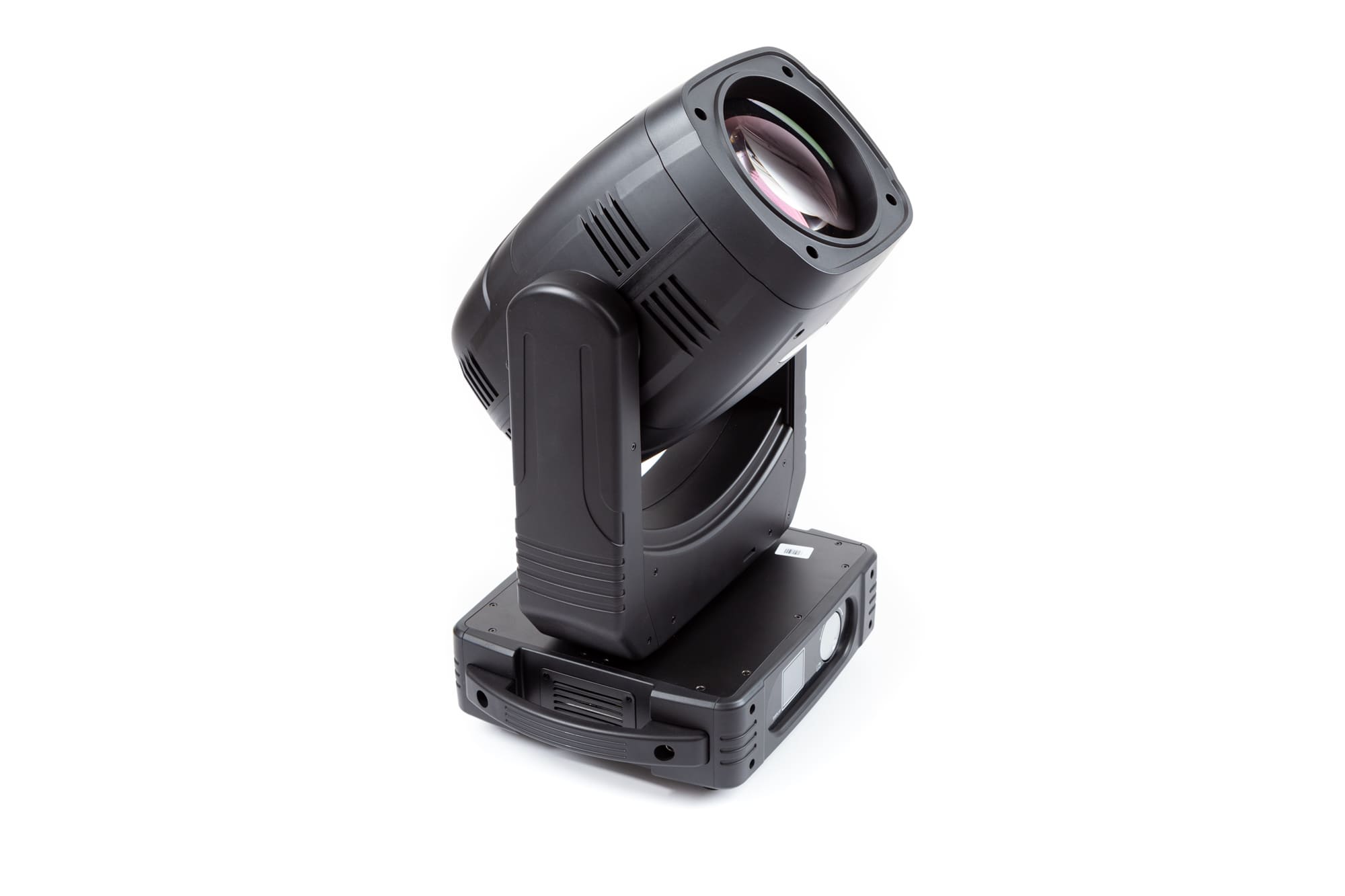

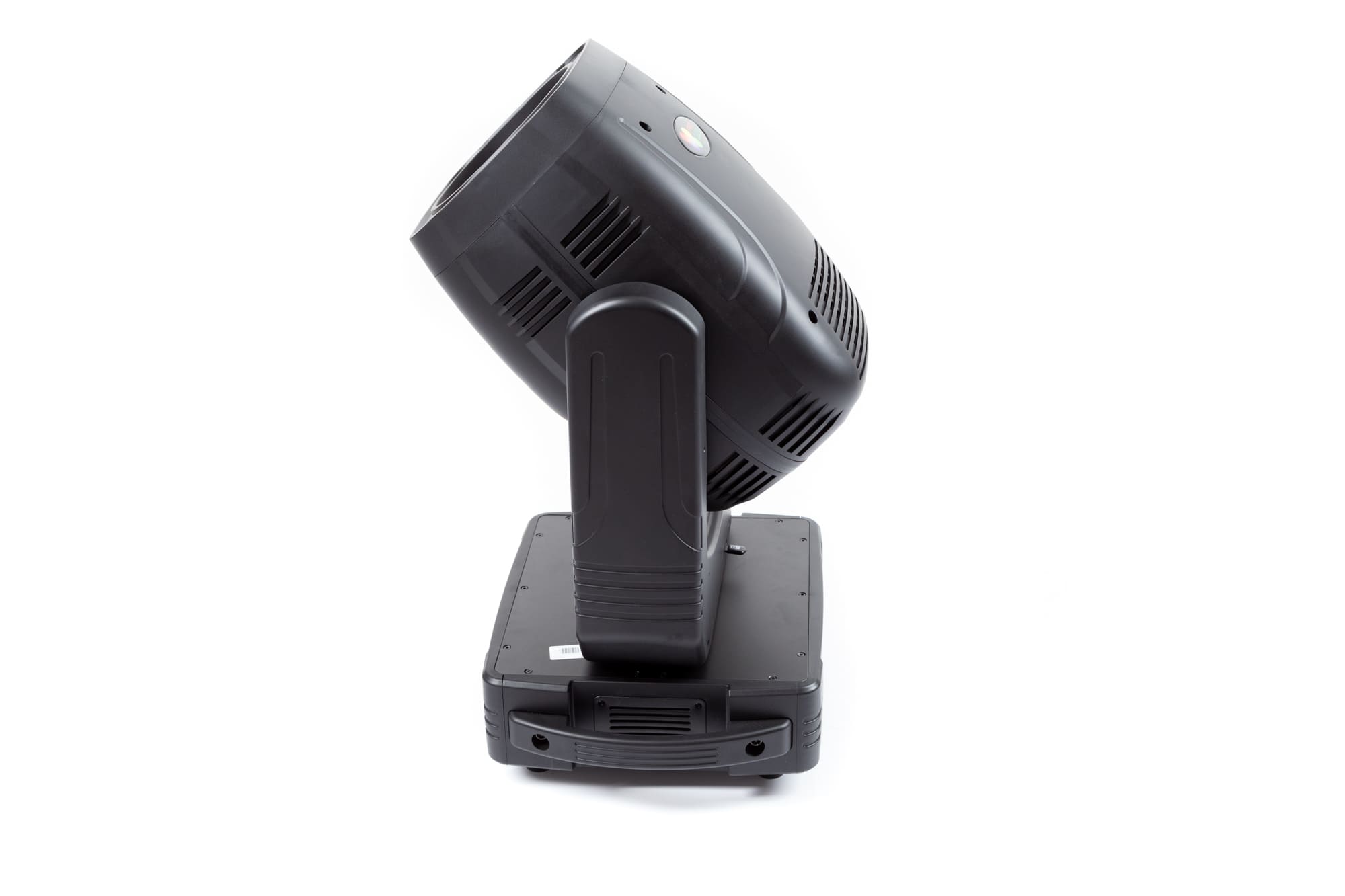

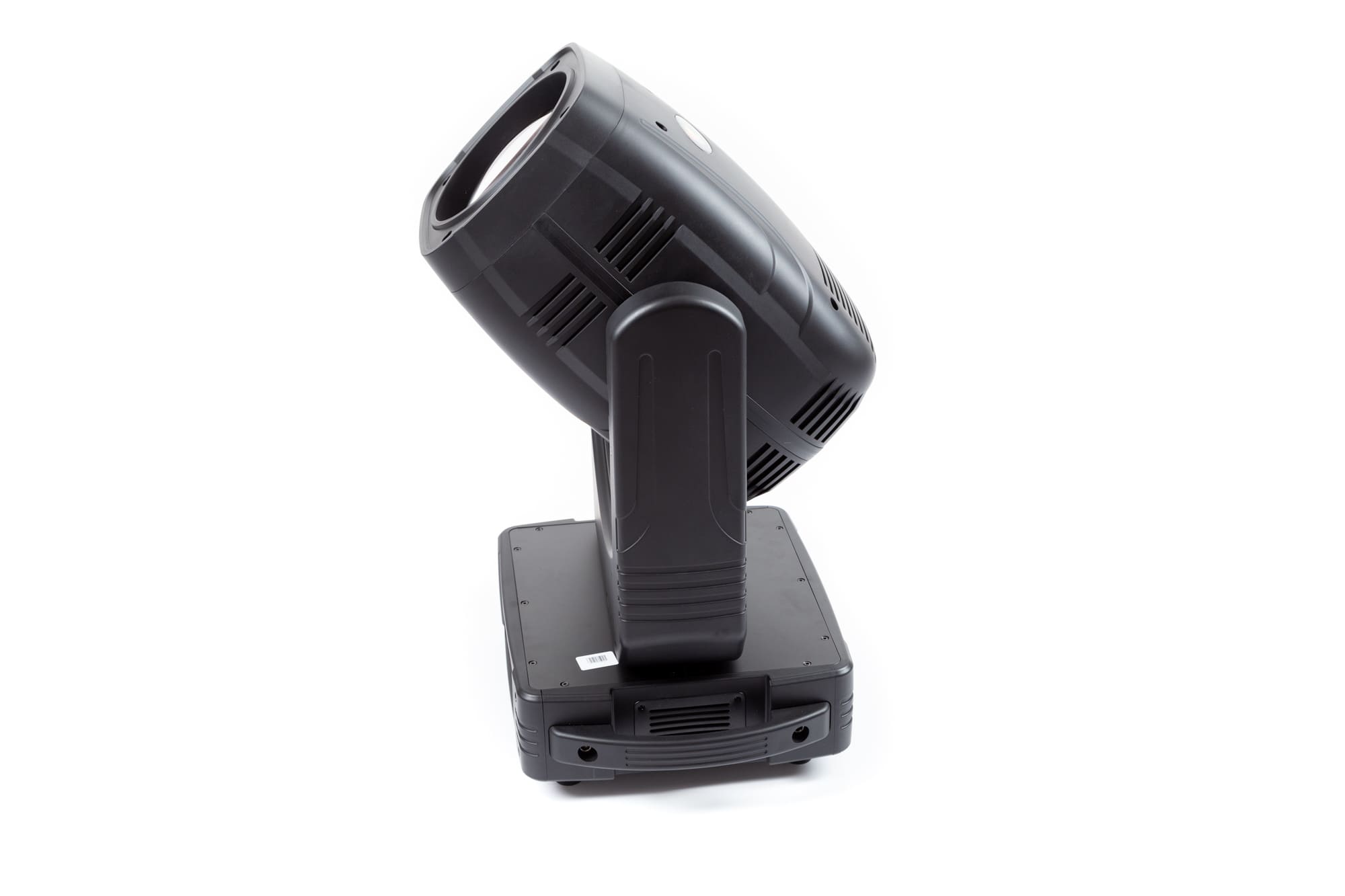

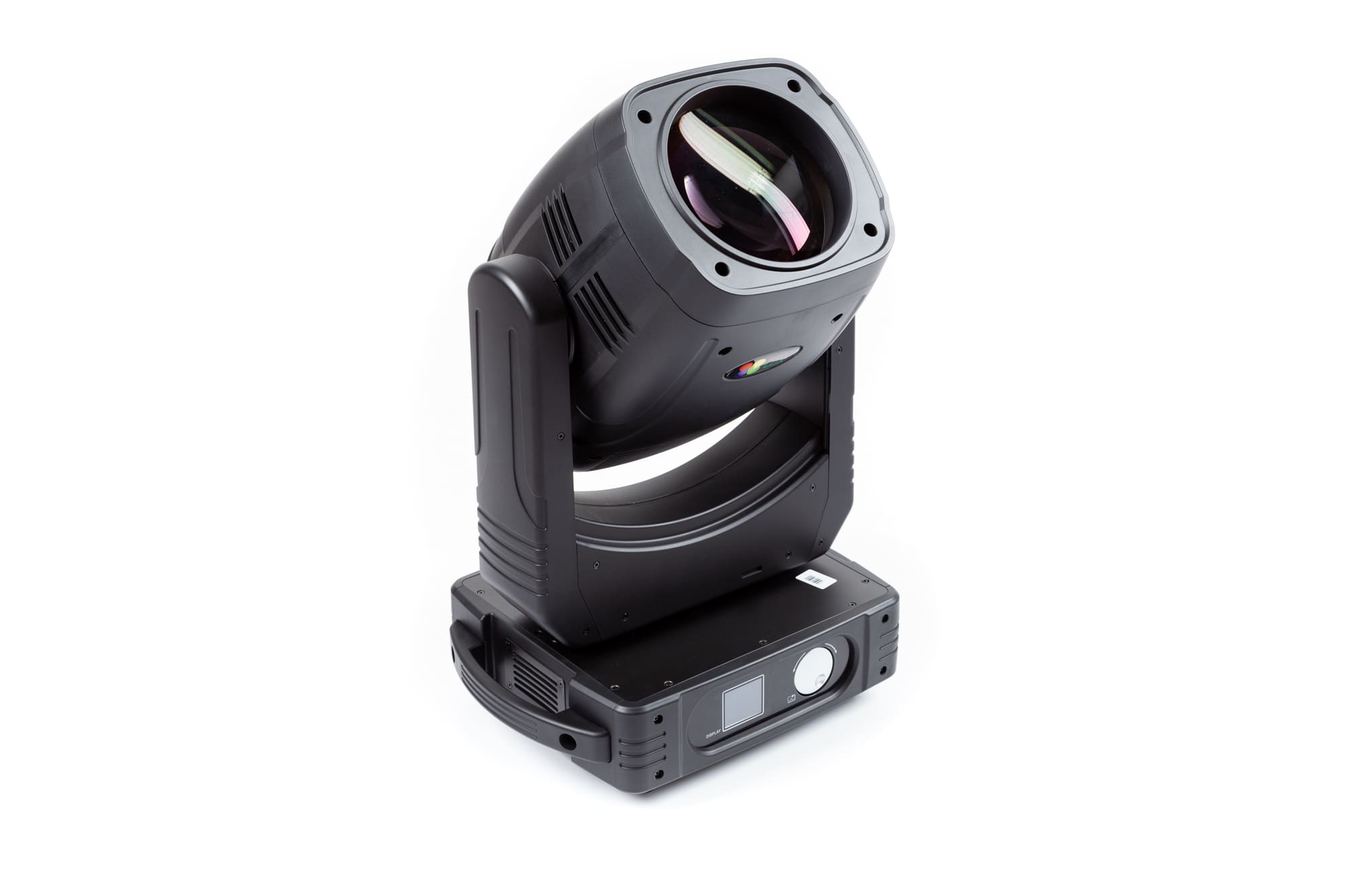

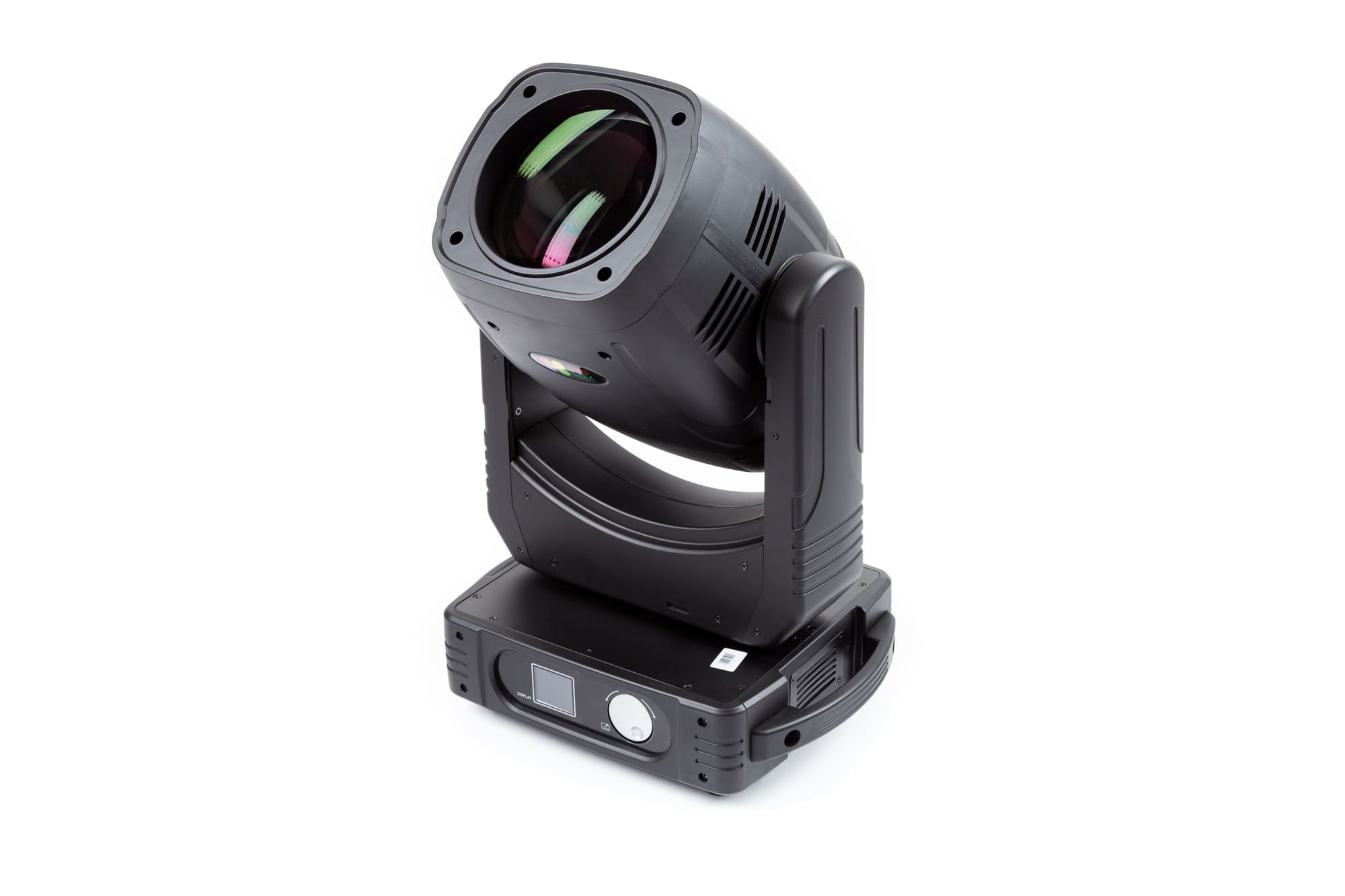

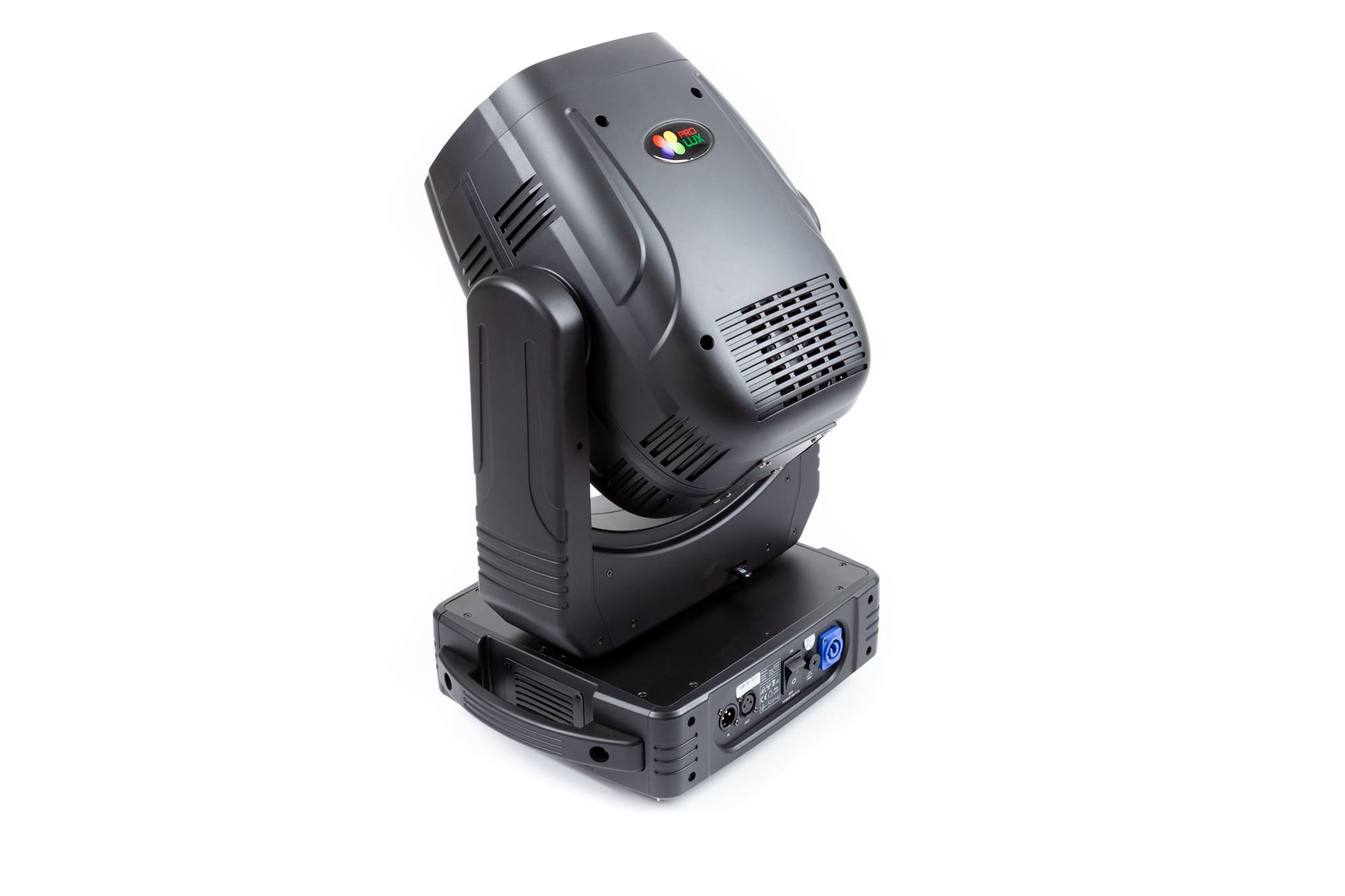

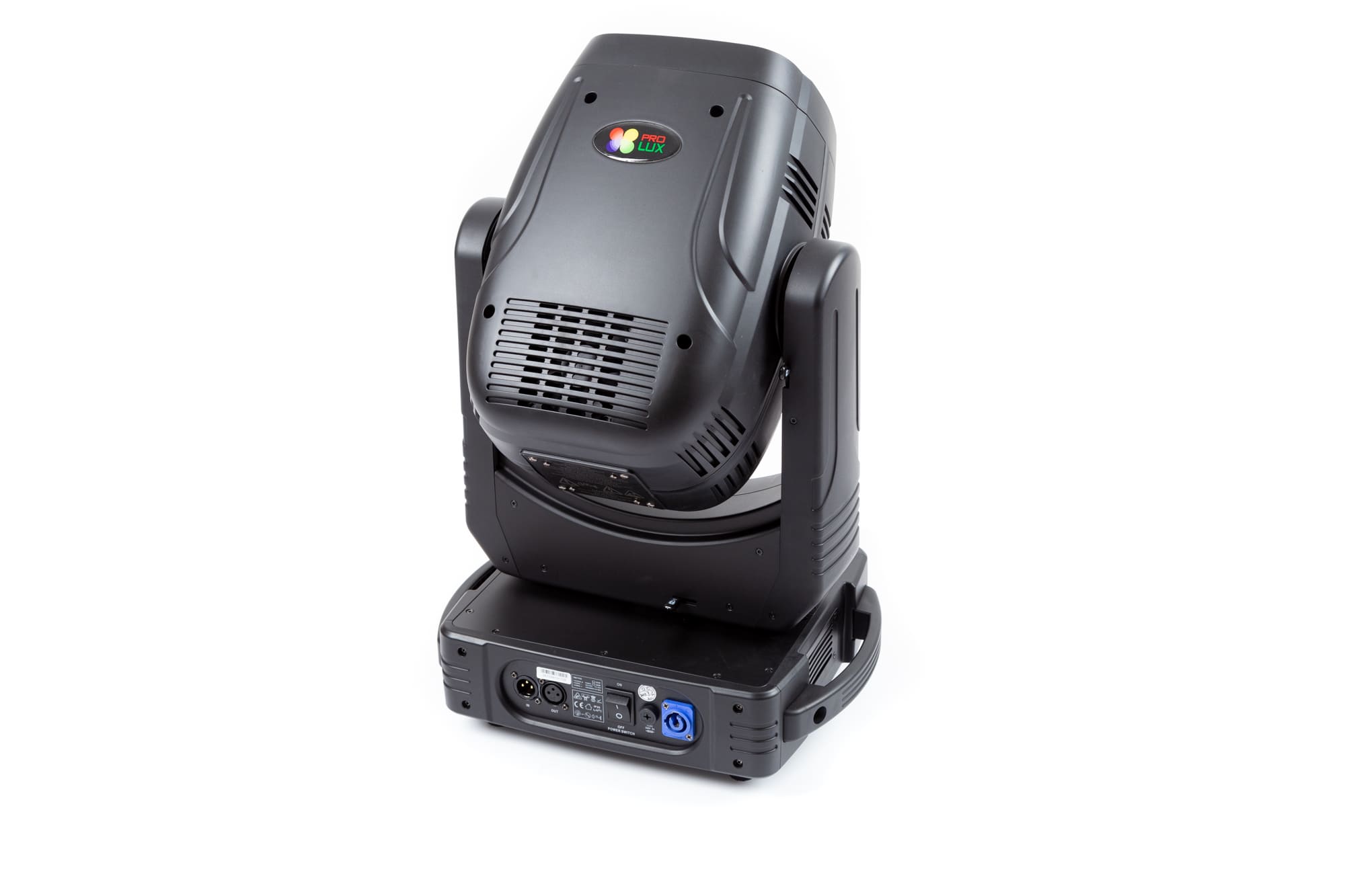

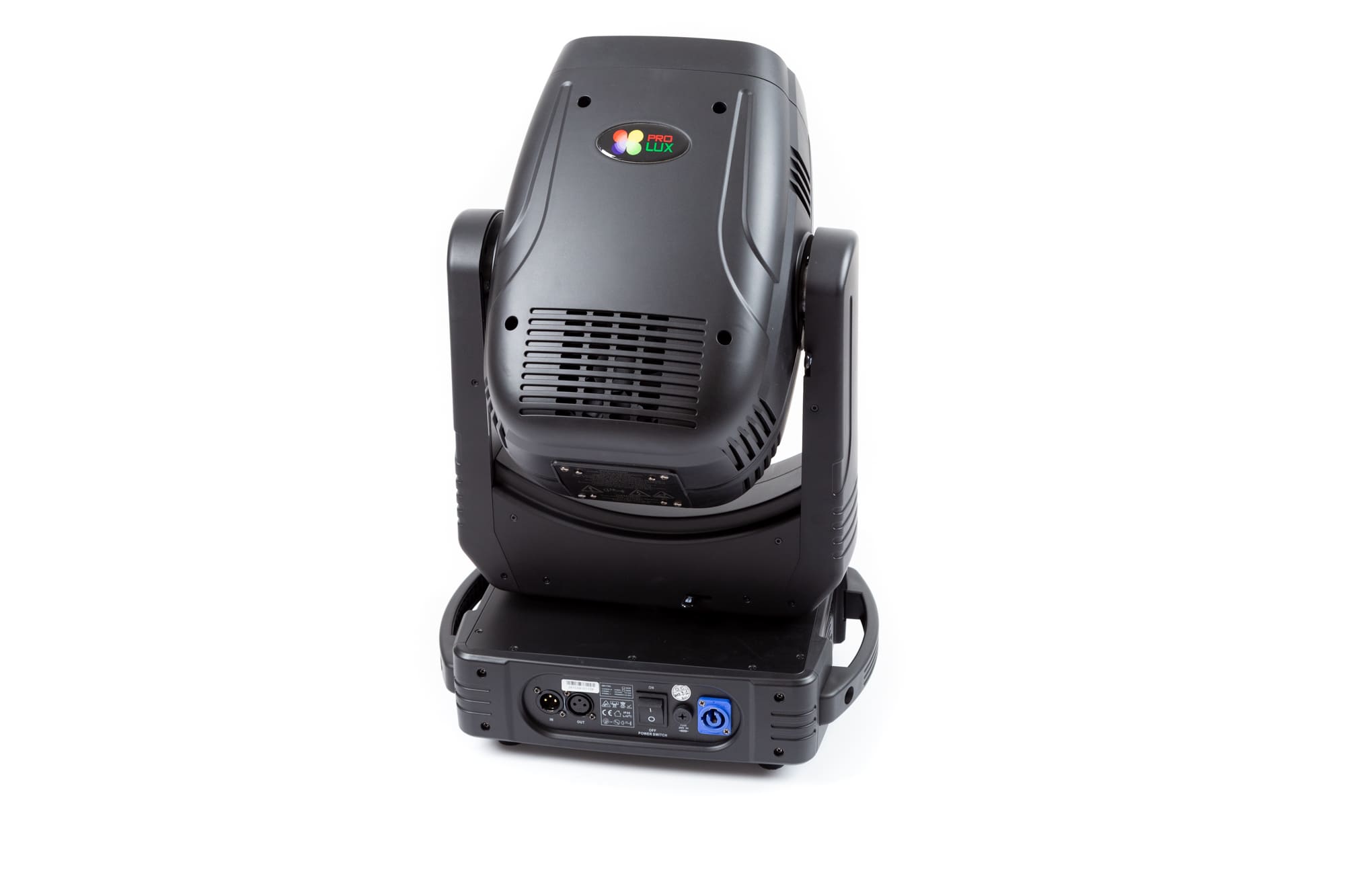

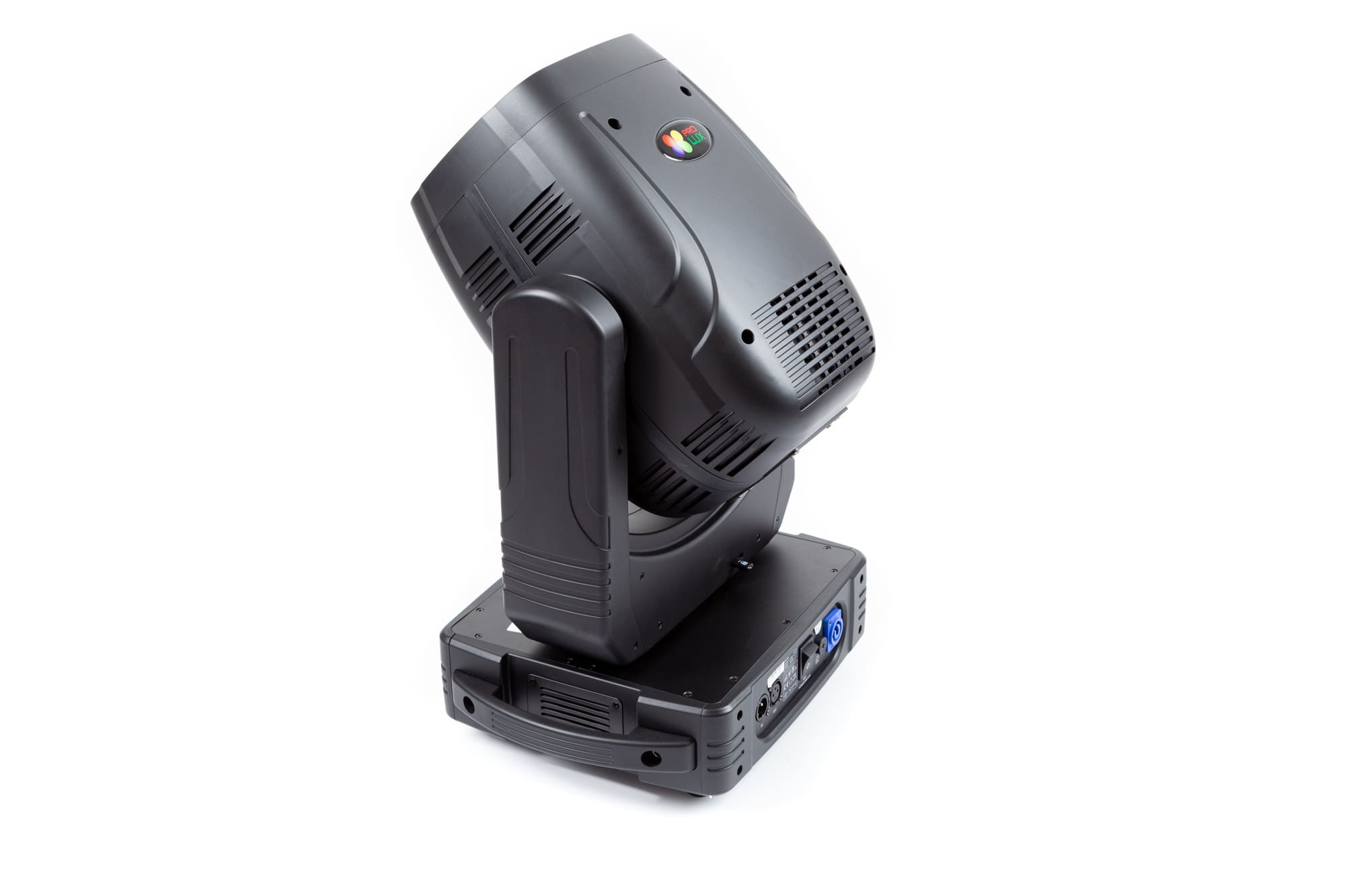

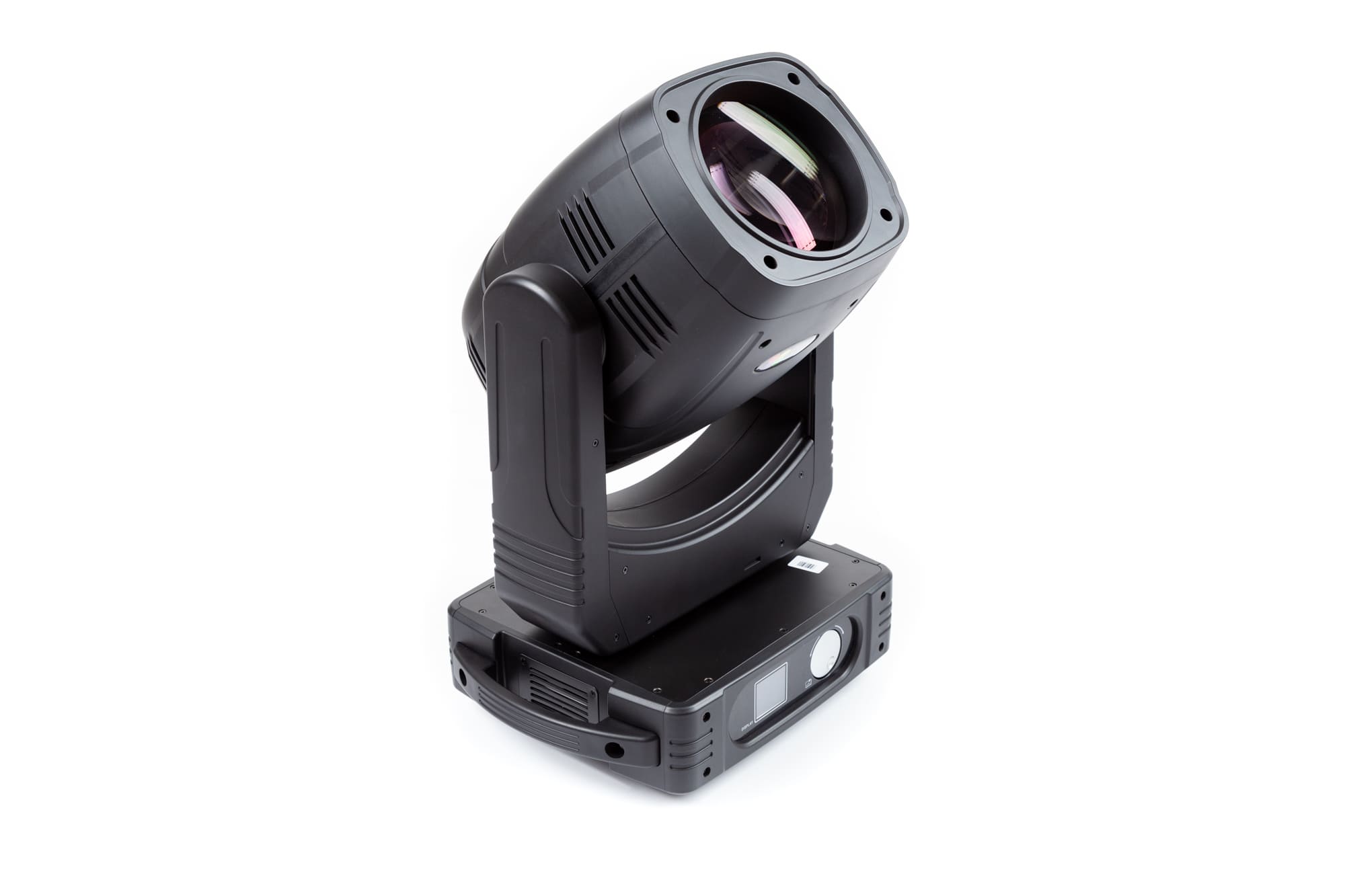

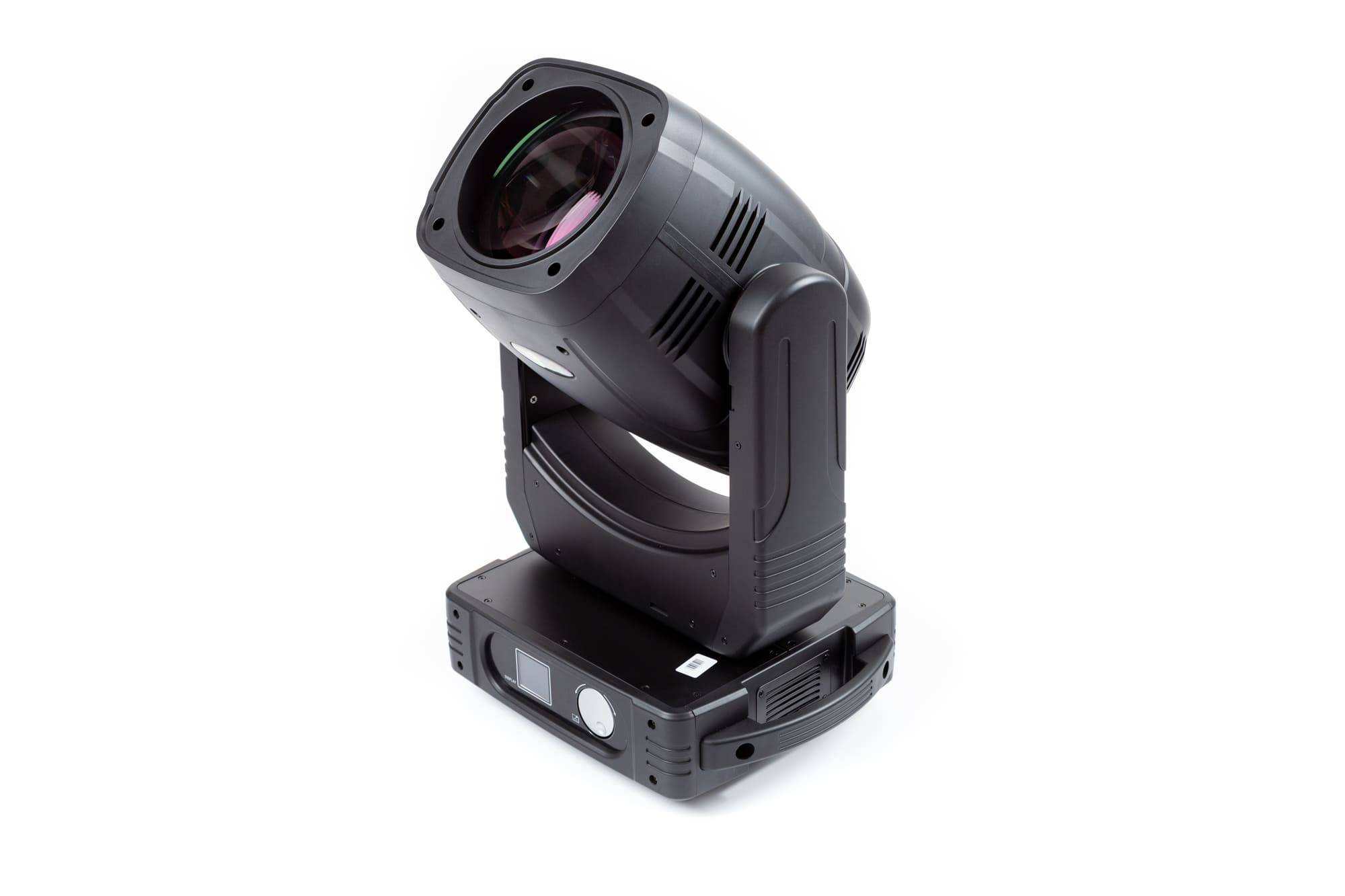

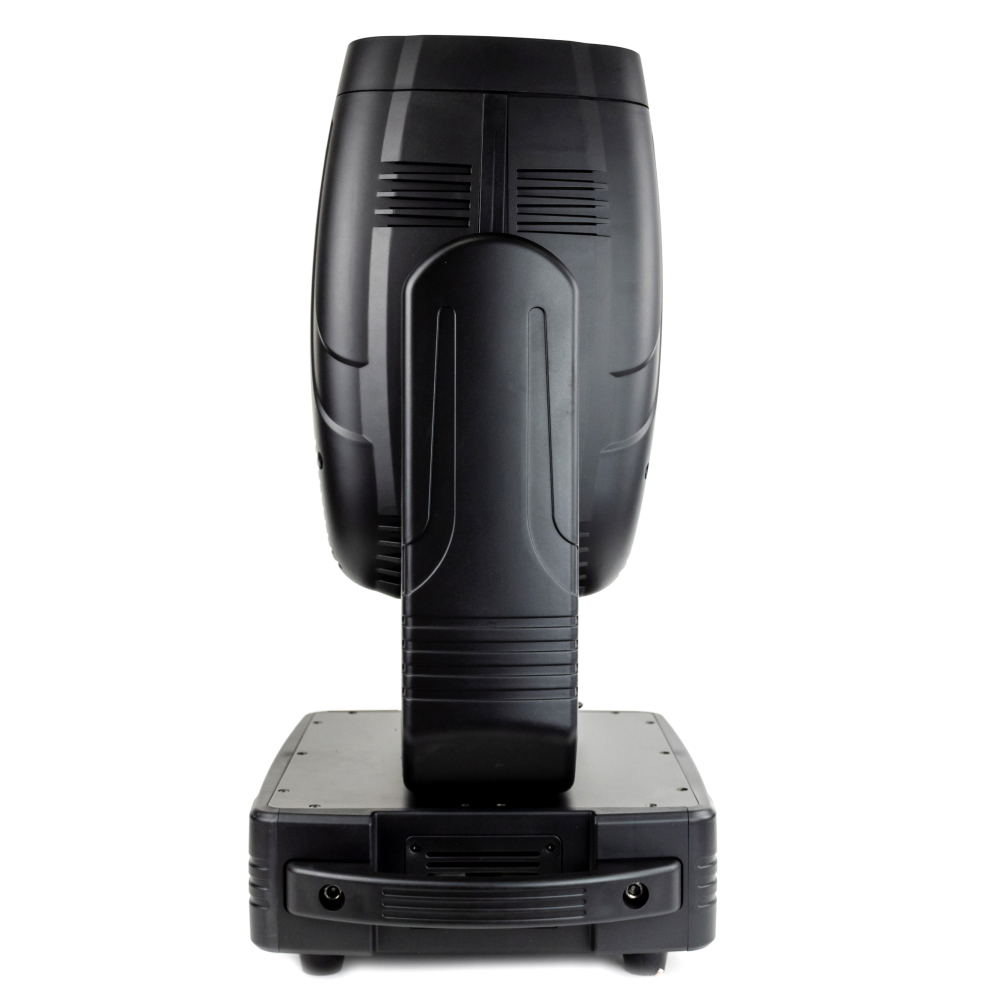

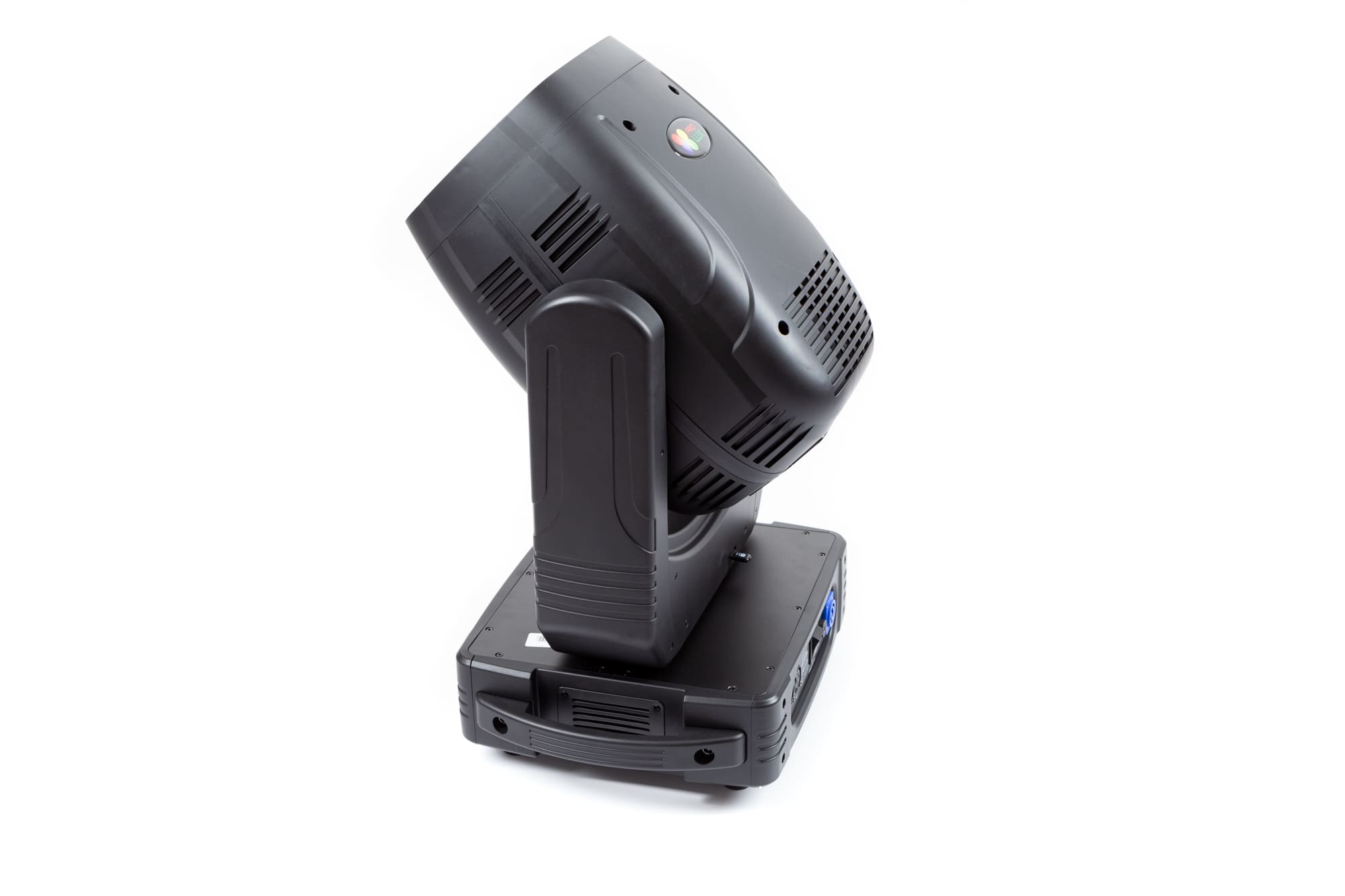

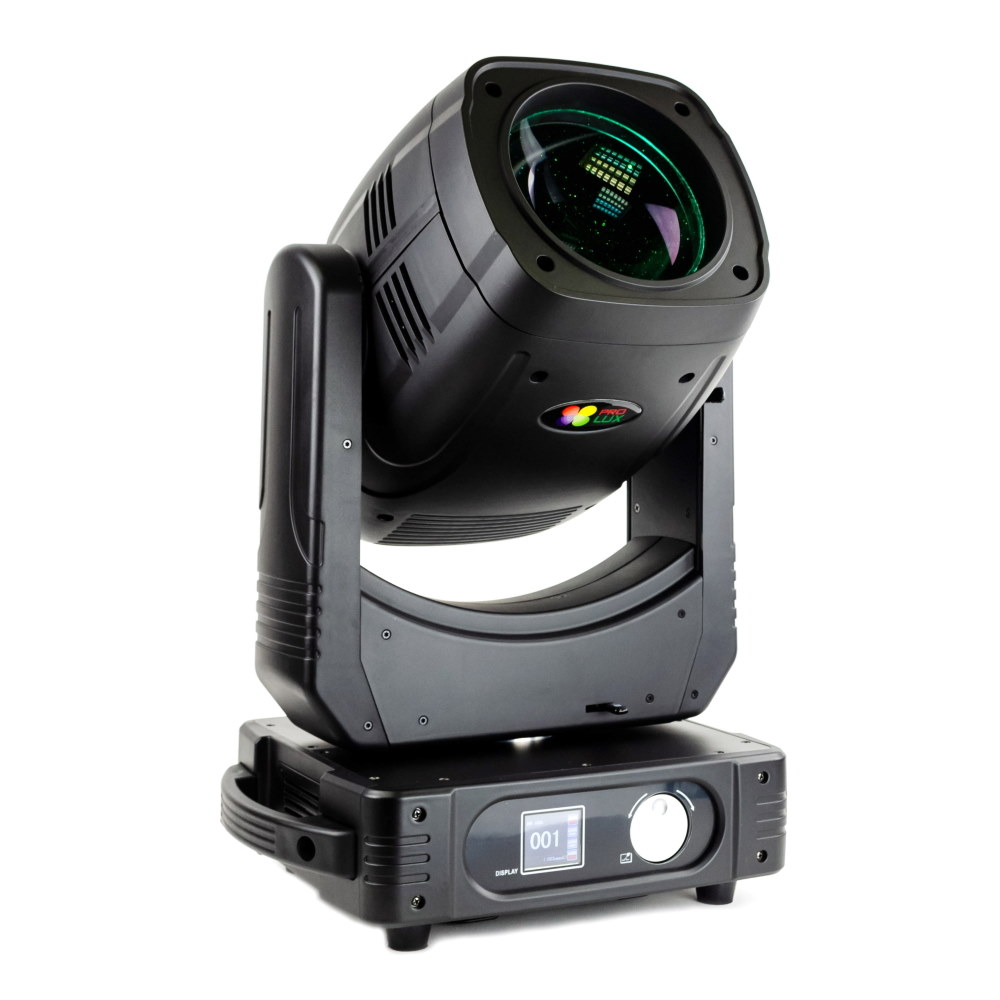

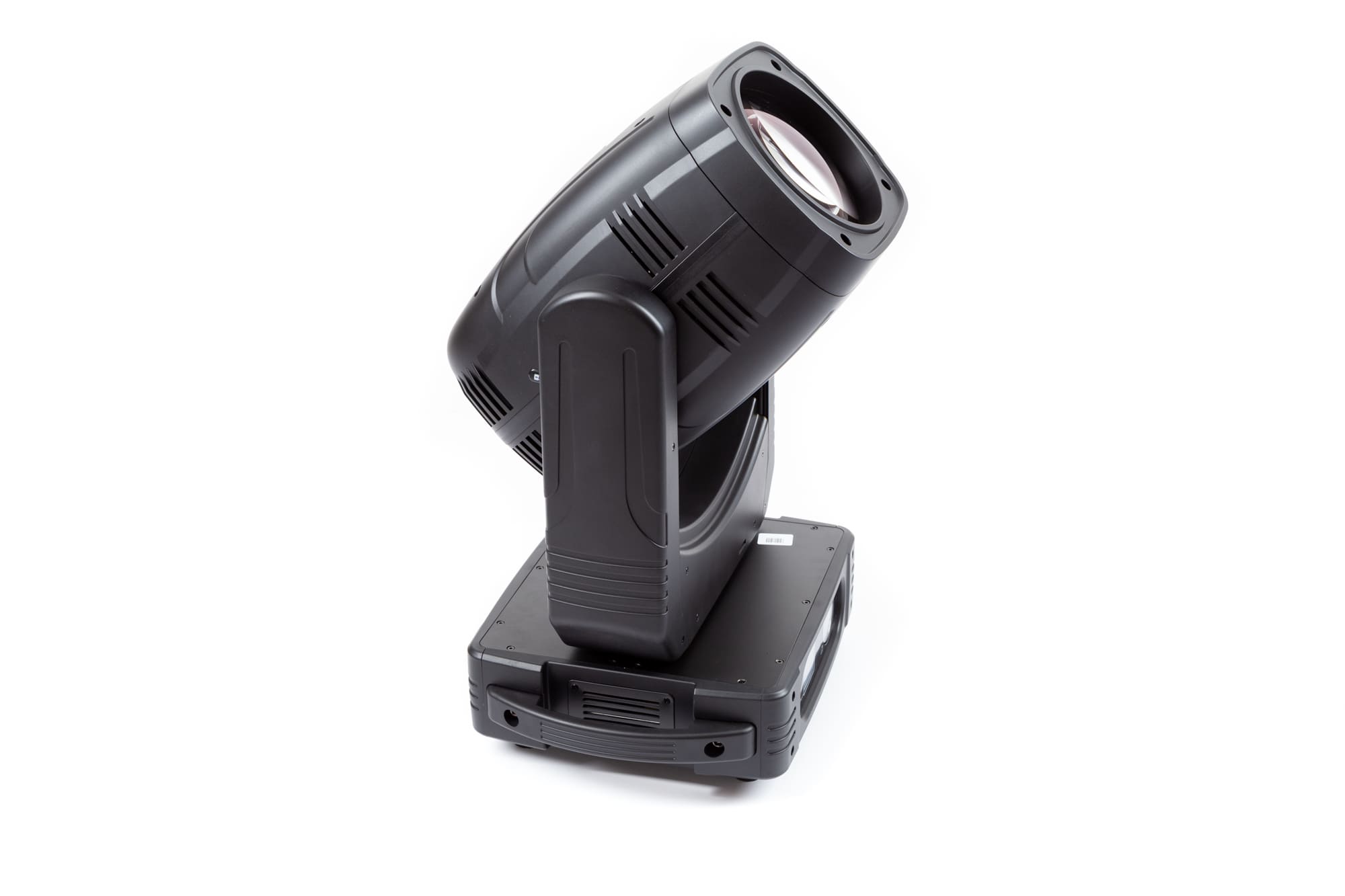

PRO LUX BEAM 260
Moving head BEAM with lamp MSD 260R9. New version of classic effect. This new fixture is faster, more accurate and more bright. There was added some new fuctions like double prism with overlay effect and rainbow wheel.
Price:
On request
| Source | |
| Lamp | Discharge lamp YODN MSD 260R9 |
| Lifespan | 2000 hours |
| Color temperature | 8000 K |
| Optical system | |
| Luminous flux | 10 400 lm |
| Illuminance | 106 025 lux @ 10 m |
| Beam angle | 3.8° |
| Focus | Linear motorized |
| Functions | |
| Color wheel | 14 colors + open |
| Gobo wheel | 14 fixed gobos + open |
| Prism | 8-faced and 16-faced rotating prisms with overlay effect |
| Frost-filter | |
| Rainbow wheel | 6 colors |
| Strobe | Mechanical 0.5-9 fps |
| Dimer | Mechanical 0-100% |
| Control | |

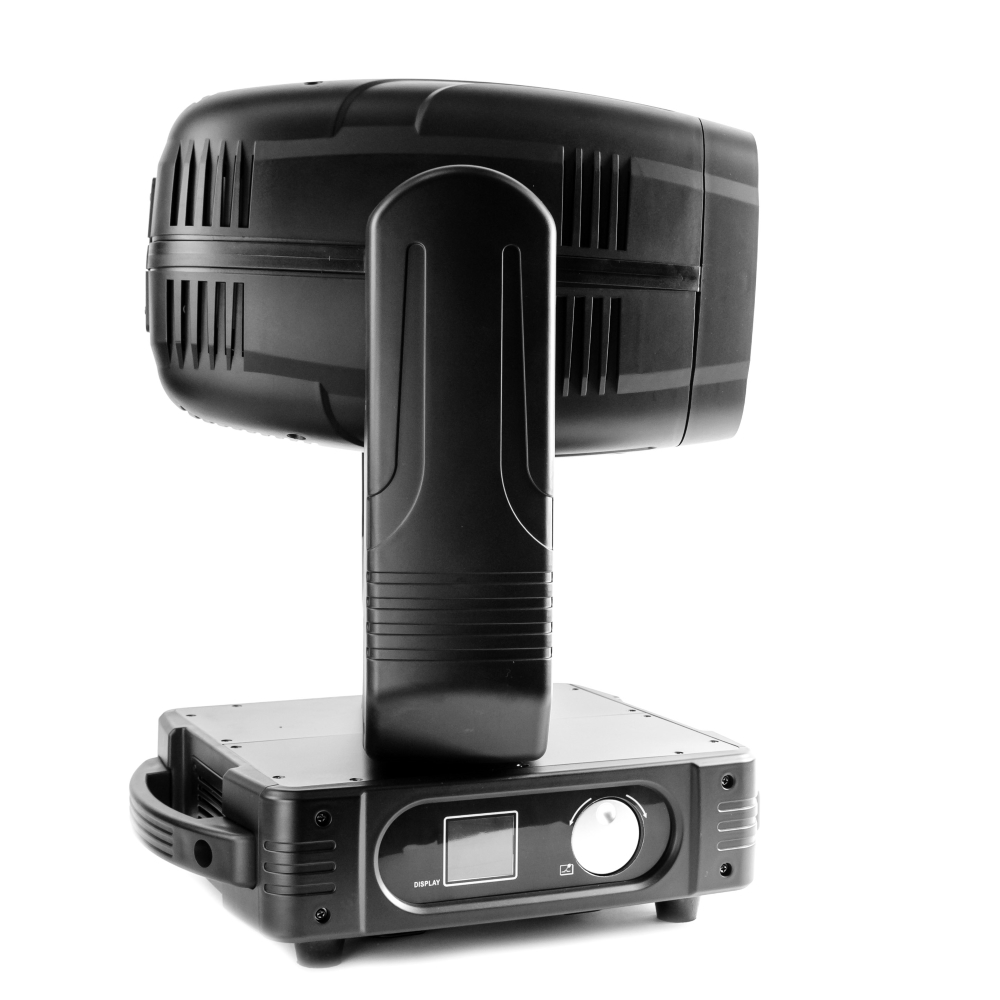

| Multifunctional LCD display | |
| DMX channels | 16 |
| Modes | DMX512/master-slave/auto |
| Movement | |
| Pan | 540° |
| Tilt | 270° |
| Resolution | 8/16 bit |
| Power supply | |
| Input | AC 110-240 V,50/60 Hz |
| Total power | 380 W |

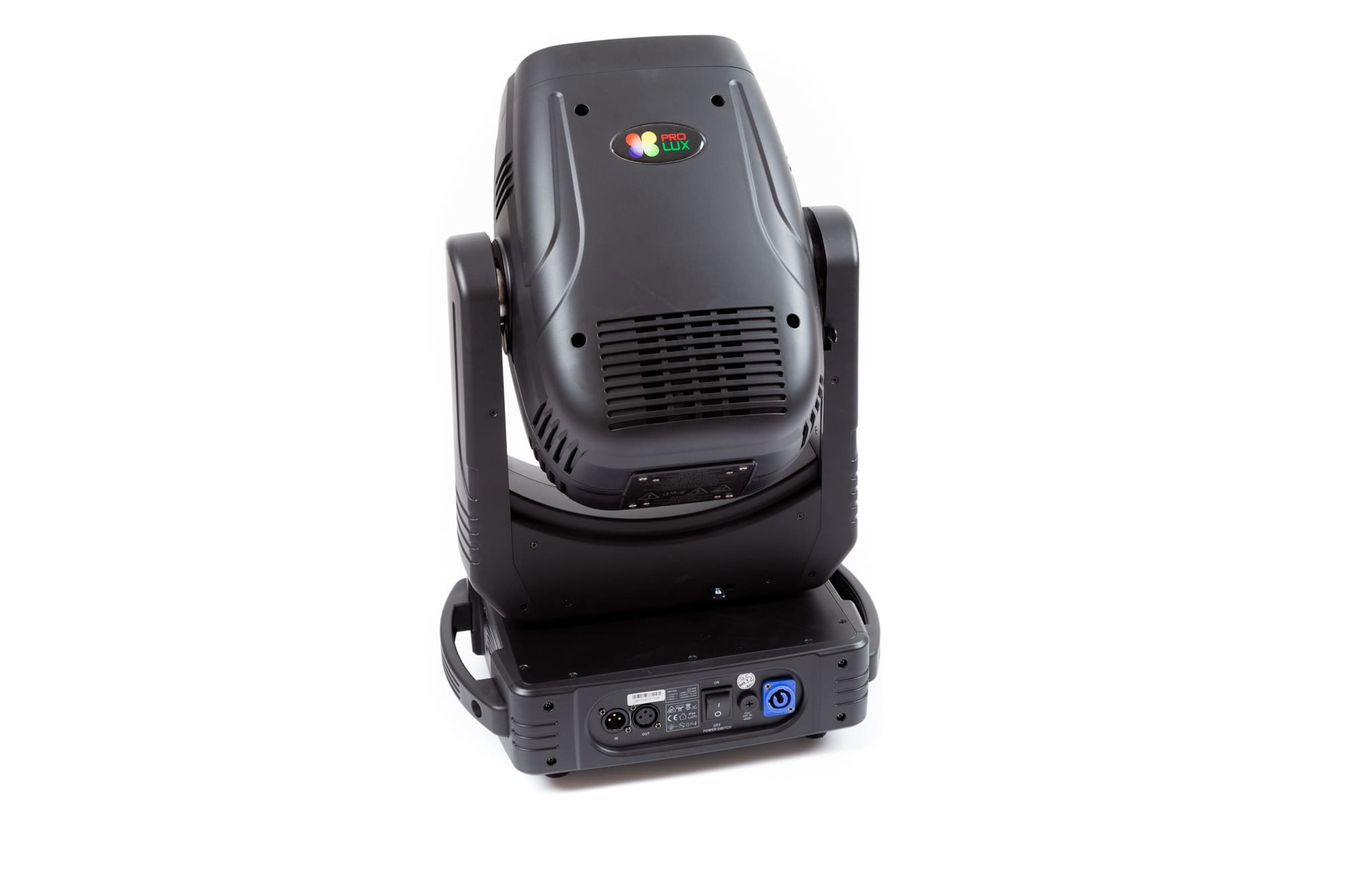

| Connections | |
| DMX512 | XLR 3-pin in/out |
| Power | powerCON in |
| Package contains | |
| Moving head | 1 pc |
| Power cord | 1 pc |
| Signal cord | 1 pc |
| Mounting bracket | 2 pcs |
| User manual | 1 pc |
| Size | |
| Product | 368x267x540 mm |
| Flight case for 2 fixtures | 810х430х710 mm |
| Carton | 465х425х585 mm |
| Weight | |
| N.W. | 16.5 kg |
| G.W. (flight case 2 in1 ) | 69 kg |
| G.W. (carton) | 20.4 kg |
