PRO LUX CABLE 222
Brand: Pro Lux
Category: Signal cables

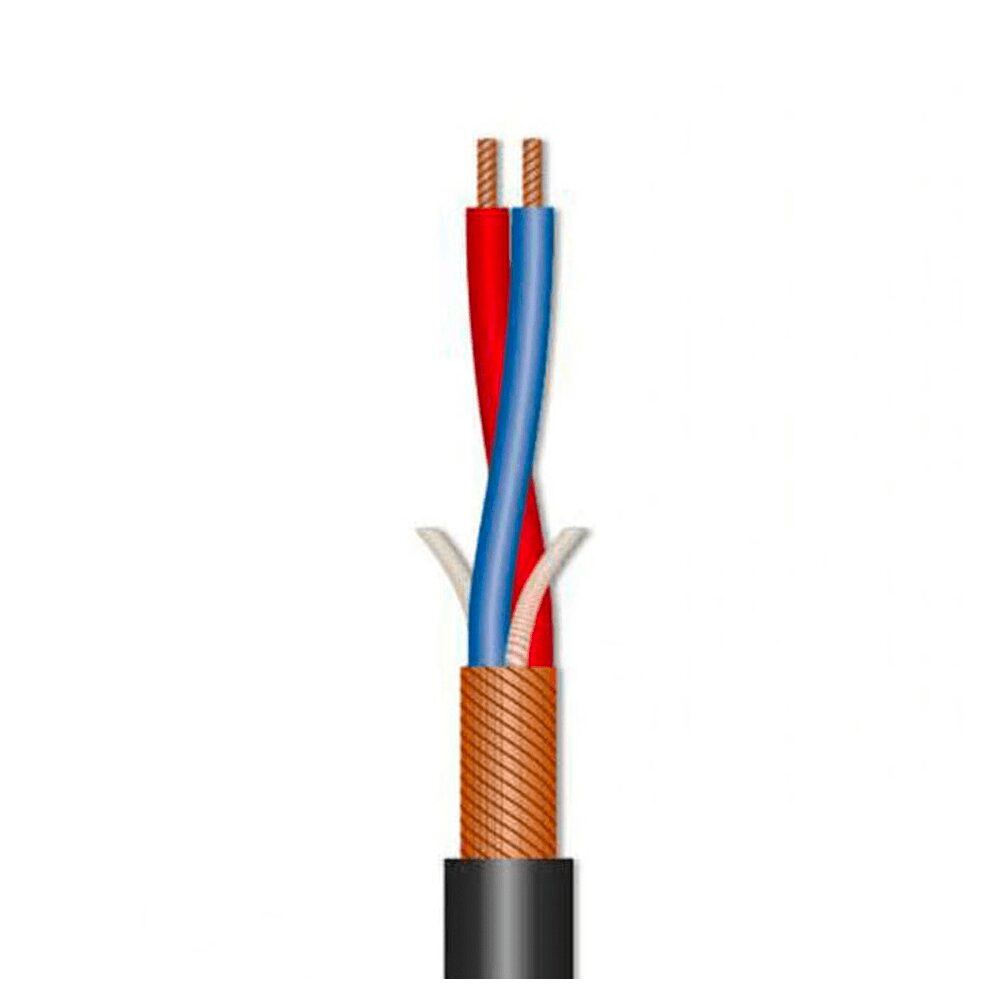

PRO LUX CABLE 222

Signal cable 2×0.22 mm².

Price:
On request 0

    • Section 2×0.22 mm².
    • Material – oxygen-free copper (OFC) wire.
    • The number of wires in the core is 28.
    • Diameter of the wires in the core – 0.10 mm.
    • PE core insulation material.
    • Twisted copper thin-wire screen (0.1 mm).
    • Screen density 99%.
    • Sheath material Soft-PVC.
    • Capacitance/core per 1 m 68 pF.
    • Core/screen capacitance per 1 m 130 pF.
    • The impedance 100 ohms.
    • Core resistance per 1 km 87 Ohms.
    • Screen resistance per 1 km 30 Ohms.
    • Operational temperature range from -20°C to +70°C.
    • Cable diameter 6.4 mm.
    • Weight (1m) 44 g.
    • Production Sommer (Germany).
